VIA SOM-4200

Share：

The VIA SOM-4200 is a SMARC module designed to accelerate the development of advanced edge AI systems and devices. Powered by the MediaTek Genio 420 Octa-core processor, this highly integrated low-power platform delivers blistering AI, graphics, video, and computing performance required a wide range of applications, including smart home, retail, industrial, and commercial use cases.

• High-performance MediaTek Genio 420 Octa-Core SoC
• High-performance 6.1 TOPS Edge AI Engine
• Advanced 4K multimedia and dual full HD display support
• Platform scalability and rich I/O connectivity
• Broad OS support for development

Datasheet

Overview
Downloads

Hardware

VIA SOM-4200 Module

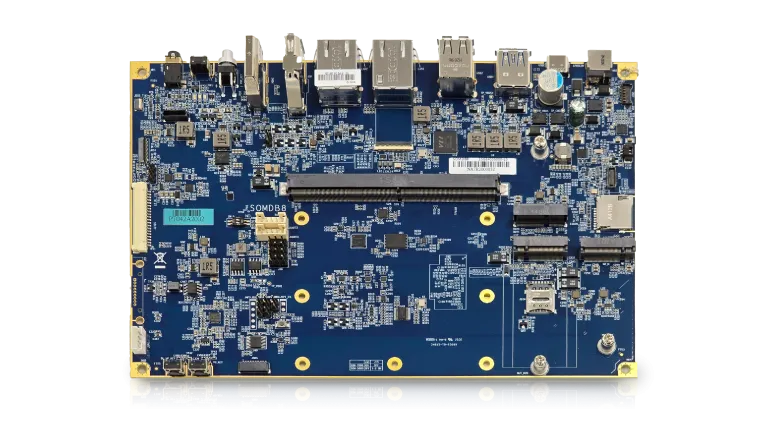

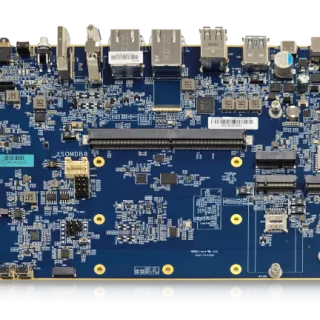

VIA SOMDB8 Carrier Board

The VIA SOM-4200 module is powered by a MediaTek Genio 420 Octa-Core Processor combining two Cortex-A78 cores operating at 1.8GHz and six Cortex-A55 cores running at 1.6GHz with an integrated AI processor, the MediaTek NPU 850, providing up to 6.1 TOPS for powerful on-device processing.

When combined with the VIA SOMDB8 carrier board, the VIA SOM-4200 module provides a wealth of camera and display integration options. This includes support for one 4-Lane MIPI CSI-2 connector and one 2-Lane MIPI CSI connector on the carrier board, a MIPI DSI display, one HDMI display, and an LVDS single-channel display.

The VIA SOM-4200 module measures 82mm x 50mm (3.22＂×2＂). The VIA SOMDB8 carrier board is based on an SBC form factor measuring 151mm x 134mm (5.94″ x 5.28″). For the full hardware specifications of the VIA SOM-4200 module and VIA SOMDB8 carrier board, download the following datasheet.

Software

VIA SOM-4200 Software Package

The VIA SOM-4200 BSP supports Android 15, Yocto 5.0, and Debian 13. Software customization services that speed up time to market and minimize development costs are also available.

Android 15.0 EVK

Yocto 5.0 EVK

Debian 13 EVK

Important: By downloading these software packages, you indicate your acceptance of the VIA Software License agreement. If you do not agree with any of the terms and conditions, do not continue to download the software.

Get In Touch

The VIA SOM-4200 module can be purchased as a discrete module or together with the VIA SOMDB8 carrier board and optional 4G wireless module. To see how it can be tailored for your specific use cases, contact us for more information!
